PyTorch Tutorial – Implementing Deep Neural Networks Using PyTorch

Last updated on Dec 15,2022 11.4K Views

Research Analyst at Edureka who loves working on Neural Networks and Deep... Research Analyst at Edureka who loves working on Neural Networks and Deep Learning!
16 / 17 Blog from Python Libraries

PyTorch Tutorial:

Let’s start this PyTorch Tutorial blog by establishing a fact that Deep Learning is something that is being used by everyone today, ranging from Virtual Assistance to getting recommendations while shoppingWith newer tools emerging to make better use of Deep Learning, programming and implementation have become easier.

This PyTorch Tutorial will give you a complete insight into PyTorch in the following sequence:


Deep Learning Frameworks In Python

Python is preferred for coding and working with Deep Learning and hence has a wide spectrum of frameworks to choose from. Such as:

    • TensorFlow
    • PyTorch
    • Keras
    • Theano
    • Lasagne


PyTorch Tutorial | Edureka

What Is PyTorch?

It’s a Python based scientific computing package targeted at two sets of audiences:

  • A replacement for NumPy to make use of the power of GPUs.
  • Deep Learning research platform that provides maximum flexibility and speed.

Features of PyTorch – Highlights

    1. Native support for Python and use of its libraries
    2. Actively used in the development of Facebook for all of it’s Deep Learning requirements in the platform.
    3. PyTorch ensures an easy to use API which helps with easier usability and better understanding when making use of the API.
    4. Dynamic Computation Graphs are a major highlight here as they ensure the graph build-up dynamically – at every point of code execution, the graph is built along and can be manipulated at run-time.
    5. PyTorch is fast and feels native, hence ensuring easy coding and fast processing.
    6. The support for CUDA ensures that the code can run on the GPU, thereby decreasing the time needed to run the code and increasing the overall performance of the system.


Installing PyTorch

Moving ahead in this PyTorch Tutorial, let’s see how simple it is to actually install PyTorch on your machine.

PyTorch Installation | PyTorch Tutorial | Edureka



It’s pretty straight-forward based on the system properties such as the Operating System or the package managers. It can be installed from the Command Prompt or within an IDE such as PyCharm etc.

Next up on this PyTorch Tutorial blog, let us check out how NumPy is integrated into PyTorch.

View Upcoming Batches For The AI And Deep Learning Course Now!

Tensors

Tensors are similar to NumPy’s n dimensional arrays, with the addition being that Tensors can also be used on a GPU to accelerate computing.

Let’s construct a simple tensor and check the output. First let’s check out on how we can construct a 5×3 matrix which is uninitiated:

x = torch.empty(5, 3)
print(x)

Output:

tensor([[8.3665e+22, 4.5580e-41, 1.6025e-03],
        [3.0763e-41, 0.0000e+00, 0.0000e+00],
        [0.0000e+00, 0.0000e+00, 3.4438e-41],
        [0.0000e+00, 4.8901e-36, 2.8026e-45],
        [6.6121e+31, 0.0000e+00, 9.1084e-44]])

Now let’s construct a randomly initialized matrix:

    x = torch.rand(5, 3)
    print(x)

Output:

tensor([[0.1607, 0.0298, 0.7555],
        [0.8887, 0.1625, 0.6643],
        [0.7328, 0.5419, 0.6686],
        [0.0793, 0.1133, 0.5956],
        [0.3149, 0.9995, 0.6372]])

Construct a tensor directly from data:

x = torch.tensor([5.5, 3])
print(x)

Output:

tensor([5.5000, 3.0000])

Tensor Operations

There are multiple syntaxes for operations. In the following example, we will take a look at the addition operation:


y = torch.rand(5, 3)
print(x + y)

Output:

    tensor([[ 0.2349, -0.0427, -0.5053],
            [ 0.6455,  0.1199,  0.4239],
            [ 0.1279,  0.1105,  1.4637],
            [ 0.4259, -0.0763, -0.9671],
            [ 0.6856,  0.5047,  0.4250]])

Resizing: If you want to reshape/resize a tensor, you can use “torch.view”:


x = torch.randn(4, 4)
y = x.view(16)
z = x.view(-1, 8) # the size -1 is inferred from other dimensions
print(x.size(), y.size(), z.size())

Output:

torch.Size([4, 4]) torch.Size([16]) torch.Size([2, 8])

NumPy For PyTorch

NumPy PyTorch | PyTorch Tutorial | Edureka

NumPy is a library for the Python programming language, adding support for large, multi-dimensional arrays and matrices, along with a large collection of high-level mathematical functions to operate on these arrays.

It is also used as:

  • Library providing tools for integrating C/C++ and FORTRAN code.
  • Operations with linear algebra, Fourier transforms and random number capabilities.

Besides its obvious scientific uses, NumPy can also be used as an efficient multi-dimensional container of generic data and arbitrary data-types can be defined as well.

This allows NumPy to seamlessly and speedily integrate with a wide variety of databases!


The NumPy Bridge – Arrays And Tensors

NumPy PyTorch | PyTorch Tutorial | Edureka

Converting a Torch Tensor to a NumPy array and vice versa is a breeze!

NumPy PyTorch | PyTorch Tutorial | Edureka

The Torch Tensor and NumPy array will share their underlying memory locations and changing one will change the other.


Converting A Torch Tensor To A NumPy Array:

a = torch.ones(5)
print(a)
Output: tensor([1., 1., 1., 1., 1.])
b = a.numpy()
print(b)
Output: [1. 1. 1. 1. 1.]

Let’s perform a sum operation and check the changes in the values:

a.add_(1)
print(a)
print(b)
Output: tensor([2., 2., 2., 2., 2.]) [2. 2. 2. 2. 2.]

Converting A NumPy Array To A Torch Tensor:

import numpy as no
a = np.ones(5)
b = torch.from_numpy(a)
np.add(a, 1, out=a)
print(a)
print(b)

Output:

[2. 2. 2. 2. 2.]
tensor([2., 2., 2., 2., 2.], dtype=torch.float64)

So, as you can see, it is as simple as that!

Next up on this PyTorch Tutorial blog, let’s check out the AutoGrad module of PyTorch.


PyTorch: AutoGrad Module

The autograd package provides automatic differentiation for all operations on Tensors.

AutoGrad Module PyTorch | PyTorch Tutorial | Edureka

It is a define-by-run framework, which means that your backprop is defined by how your code is run, and that every single iteration can be different.

Next up on this PyTorch Tutorial Blog, let’s look an interesting and a simple use case.


PyTorch Use Case: Training an Image Classifier

Generally, when you have to deal with image, text, audio or video data, you can use standard python packages that load data into a Numpy array. Then you can convert this array into a torch.*Tensor.

  • For images, packages such as Pillow and OpenCV are useful.
  • For audio, packages such as Scipy and Librosa.
  • For text, either raw Python, Cython based loading or NLTK and SpaCy are useful.

Specifically for vision, there is a package called torchvision, that has data loaders for common datasets such as Imagenet, CIFAR10, MNIST, etc. and data transformers for images.

This provides a huge convenience and avoids writing boilerplate code.

For this tutorial, we will use the CIFAR10 dataset.

It has the classes: ‘airplane’, ‘automobile’, ‘bird’, ‘cat’, ‘deer’, ‘dog’, ‘frog’, ‘horse’, ‘ship’, ‘truck’. The images in CIFAR-10 are of size 3x32x32, i.e. 3-channel color images of 32×32 pixels in size as shown below:

cifar10 pytorch | Pytorch tutorial | Edureka


PyTorch: Training The CIFAR10 Classifier

PyTorch Tutorial | Edureka

We will do the following steps in order:

    1. Loading And Normalizing CIFAR10
    2. Define a Convolution Neural Network
    3. Define a loss function
    4. Train the network on the training data
    5. Test the network on the test data


1. Loading And Normalizing CIFAR10

Using torchvision, it is very easy to load CIFAR10!

It is as simple as follows:

import torch
import torchvision
import torchvision.transforms as transforms

The output of torchvision datasets are PILImage images of range [0, 1]. We transform them to Tensors of normalized range [-1, 1].

transform = transforms.Compose(
[transforms.ToTensor(),
transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])
trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
download=True, transform=transform)
trainloader = torch.utils.data.DataLoader(trainset, batch_size=4,
shuffle=True, num_workers=2)
testset = torchvision.datasets.CIFAR10(root='./data', train=False,
download=True, transform=transform)
testloader = torch.utils.data.DataLoader(testset, batch_size=4,
shuffle=False, num_workers=2)
classes = ('plane', 'car', 'bird', 'cat',
'deer', 'dog', 'frog', 'horse', 'ship', 'truck')

Output:

Downloading https://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz to ./data/cifar-10-python.tar.gz Files already downloaded and verified

Next, let us print some training images from the dataset!


import matplotlib.pyplot as plt
import numpy as np

# functions to show an image


def imshow(img):
img = img / 2 + 0.5 # unnormalize
npimg = img.numpy()
plt.imshow(np.transpose(npimg, (1, 2, 0)))


# get some random training images
dataiter = iter(trainloader)
images, labels = dataiter.next()

# show images
imshow(torchvision.utils.make_grid(images))
# print labels
print(' '.join('%5s' % classes[labels[j]] for j in range(4)))

PyTorch Tutorial - Edureka

Output:

dog  bird horse horse

2. Define A Convolution Neural Network

Consider the case to use 3-channel images (Red, Green and Blue). Here’s the code to define the architecture of the CNN:


import torch.nn as nn
import torch.nn.functional as F


class Net(nn.Module):
def __init__(self):
super(Net, self).__init__()
self.conv1 = nn.Conv2d(3, 6, 5)
self.pool = nn.MaxPool2d(2, 2)
self.conv2 = nn.Conv2d(6, 16, 5)
self.fc1 = nn.Linear(16 * 5 * 5, 120)
self.fc2 = nn.Linear(120, 84)
self.fc3 = nn.Linear(84, 10)

def forward(self, x):
x = self.pool(F.relu(self.conv1(x)))
x = self.pool(F.relu(self.conv2(x)))
x = x.view(-1, 16 * 5 * 5)
x = F.relu(self.fc1(x))
x = F.relu(self.fc2(x))
x = self.fc3(x)
return x


net = Net()


3. Define Loss Function And Optimizer

We will need to define the loss function. In this case we can make use of a Classification Cross-Entropy loss. We’ll also be using SGD with momentum as well.

Basically, the Cross-Entropy Loss is a probability value ranging from 0-1. The perfect model will a Cross Entropy Loss of 0 but it might so happen that the expected value may be 0.2 but you are getting 2. This will lead to a very high loss and not be efficient at all!

import torch.optim as optim

criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)


4. Train The Network

This is when things start to get interesting! We simply have to loop over our data iterator, and feed the inputs to the network and optimize.

for epoch in range(2): # loop over the dataset multiple times

running_loss = 0.0
for i, data in enumerate(trainloader, 0):
# get the inputs
inputs, labels = data

# zero the parameter gradients
optimizer.zero_grad()

# forward + backward + optimize
outputs = net(inputs)
loss = criterion(outputs, labels)
loss.backward()
optimizer.step()

# print statistics
running_loss += loss.item()
if i % 2000 == 1999: # print every 2000 mini-batches
print('[%d, %5d] loss: %.3f' %
(epoch + 1, i + 1, running_loss / 2000))
running_loss = 0.0

print('Finished Training')

Output:

[1,  2000] loss: 2.236
[1,  4000] loss: 1.880
[1,  6000] loss: 1.676
[1,  8000] loss: 1.586
[1, 10000] loss: 1.515
[1, 12000] loss: 1.464
[2,  2000] loss: 1.410
[2,  4000] loss: 1.360
[2,  6000] loss: 1.360
[2,  8000] loss: 1.325
[2, 10000] loss: 1.312
[2, 12000] loss: 1.302
Finished Training


5. Test The Network On The Test Data

We have trained the network for 2 passes over the training dataset. But we need to check if the network has learnt anything at all.

We will check this by predicting the class label that the neural network outputs, and checking it against the ground-truth. If the prediction is correct, we add the sample to the list of correct predictions.

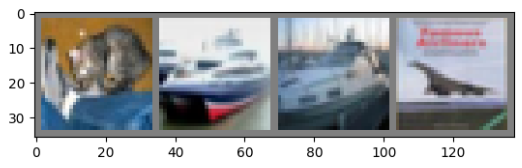

Okay, first step! Let us display an image from the test set to get familiar.

dataiter = iter(testloader)
images, labels = dataiter.next()

# print images
imshow(torchvision.utils.make_grid(images))
print('GroundTruth: ', ' '.join('%5s' % classes[labels[j]] for j in range(4)))

PyTorch Tutorial - Edureka

Output:

GroundTruth:    cat  ship  ship plane

Okay, now let us see what the Neural Network thinks these examples above are:

outputs = net(images)



The outputs are energies for the 10 classes. Higher the energy for a class, the more the network thinks that the image is of the particular class. So, let’s get the index of the highest energy:

predicted = torch.max(outputs, 1)

print('Predicted: ', ' '.join('%5s' % classes[predicted[j]]
for j in range(4)))

Output:

Predicted:    cat   car   car plane

The results seem pretty good.


Next up on this PyTorch Tutorial blog, let us look at how the network performs on the whole dataset!

correct = 0
total = 0
with torch.no_grad():
for data in testloader:
images, labels = data
outputs = net(images)
_, predicted = torch.max(outputs.data, 1)
total += labels.size(0)
correct += (predicted == labels).sum().item()

print('Accuracy of the network on the 10000 test images: %d %%' % (
100 * correct / total))

Output:

Accuracy of the network on the 10000 test images: 54 %

That looks better than chance, which is 10% accuracy (randomly picking a class out of 10 classes).

Seems like the network learned something!


What are the classes that performed well, and the classes that did not perform well?

class_correct = list(0. for i in range(10))
class_total = list(0. for i in range(10))
with torch.no_grad():
for data in testloader:
images, labels = data
outputs = net(images)
_, predicted = torch.max(outputs, 1)
c = (predicted == labels).squeeze()
for i in range(4):
label = labels[i]
class_correct[label] += c[i].item()
class_total[label] += 1


for i in range(10):
print('Accuracy of %5s : %2d %%' % (
classes[i], 100 * class_correct[i] / class_total[i]))

Output:

Accuracy of plane : 61 %
Accuracy of   car : 85 %
Accuracy of  bird : 46 %
Accuracy of   cat : 23 %
Accuracy of  deer : 40 %
Accuracy of   dog : 36 %
Accuracy of  frog : 80 %
Accuracy of horse : 59 %
Accuracy of  ship : 65 %
Accuracy of truck : 46 %

In this PyTorch Tutorial blog, we made sure to train a small Neural Network which classifies images and it turned out perfectly as expected!

Check out this NLP using Python training by Edureka to upgrade your AI skills to the next levelYou may go through this PyTorch Tutorial video where I have explained the topics in a detailed manner with use cases that will help you to understand this concept better.

PyTorch Tutorial | Image Classifier Using PyTorch | Edureka


This video will help you in understanding various important basics of PyTorch.

Learn Artificial Intelligence And Deep Learning From Experts Now!



Comments
0 Comments

Join the discussion

Browse Categories

webinar REGISTER FOR FREE WEBINAR
REGISTER NOW
webinar_success Thank you for registering Join Edureka Meetup community for 100+ Free Webinars each month JOIN MEETUP GROUP

Subscribe to our Newsletter, and get personalized recommendations.

image not found!
image not found!

PyTorch Tutorial – Implementing Deep Neural Networks Using PyTorch

edureka.co
